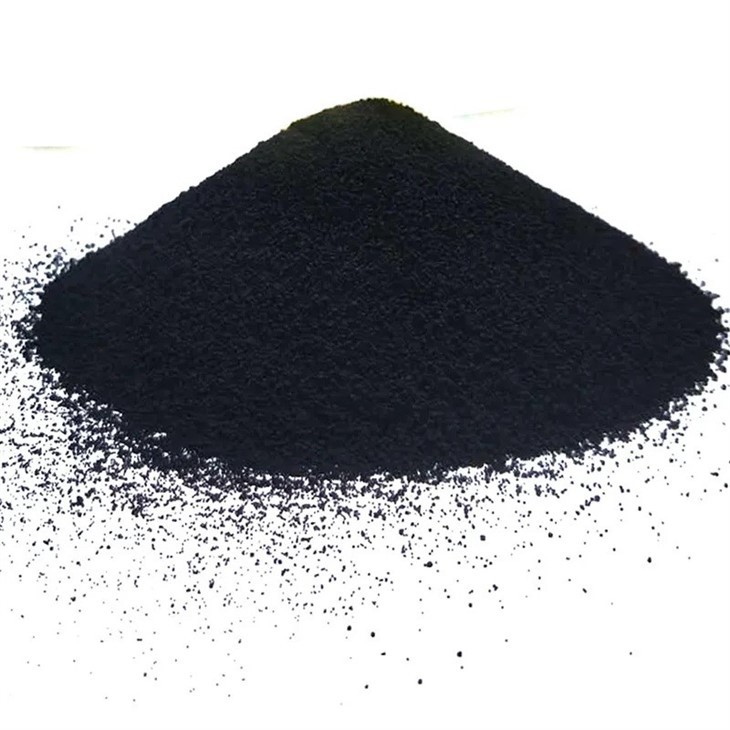

Carbon Nanotube For Lithium Battery
The application of carbon nanotubes (CNTs) in lithium batteries is mainly reflected in their use as electrode materials, conductive additives and electrolyte additives.
- As electrode materials. Carbon nanotubes are used as electrode materials in lithium-ion batteries due to their excellent conductivity and chemical stability. They can improve the capacity and charge/discharge efficiency of the electrode.
- As conductive additives. Carbon nanotubes can be added to the cathode active material of lithium batteries to form a linear connection, thereby substantially improving the conductivity of the cathode material.2345
- As electrolyte additive. Carbon nanotubes can be added to lithium-ion batteries to improve the conductivity of the electrolyte, thereby enhancing battery performance.
|
Model |
Tube Diameter(nm) |
Tube Length(um) |
Purity(%) |
Electric Resistivity |
Specific surface area(m2/g) |
Water(%) |
|
Ordinary Carbon Nanotube |
||||||
|
GT-210 |
7-15 |
≤50 |
92.0 |
60-75 |
240-300 |
≤1 |
|
GT-220 |
5-15 |
≤50 |
92.0 |
50-70 |
260-330 |
≤1 |
|
GT-280 |
5-10 |
≤50 |
95.0 |
50-70 |
320-420 |
≤1 |
|
GT-301 |
10-20 |
5-15 |
97.5 |
80-100 |
220-270 |
≤1 |
|
Acid purified Carbon Nanotube |
||||||
|
GTCO-210 |
7-15 |
≤50 |
92.0 |
60-75 |
260-340 |
≤0.5 |
|
GTCO-220 |
5-15 |
≤50 |
92.0 |
50-70 |
260-360 |
≤0.5 |
|
GTCO-280 |
5-10 |
≤50 |
95.0 |
50-70 |
350-450 |
≤0.5 |
|
GTCO-301 |
10-20 |
5-15 |
97.5 |
80-100 |
230-300 |
≤0.5 |
|
Special purified Carbon Nanotube |
||||||
|
HGT-210 |
7-15 |
≤50 |
92.0 |
230-300 |
230-280 |
≤0.5 |
|
HGT-220 |
5-15 |
≤50 |
92.0 |
210-280 |
230-300 |
≤0.5 |
|
HGT-280 |
5-10 |
≤50 |
95.0 |
230-300 |
230-280 |
≤0.5 |
|
HGT-301 |
10-20 |
5-15 |
97.5 |
270-340 |
200-260 |
≤0.5 |
