What is Ceramic Sagger



A ceramic sagger is a type of kiln furniture.It is a ceramic boxlike container used in the firing of pottery to enclose or protect ware being fired inside a kiln. Saggars are still used in the production of ceramics to shield ware from the direct contact of flames and from damage by kiln debris.



Benefits of Ceramic Sagger





Low Pollution
Ceramic sagger have excellent chemical stability at high temperatures and do not react with the cathode materials, thereby reducing the emission of harmful gases. This is crucial for environmental protection, especially in large-scale production processes.



Reusability
Ceramic sagger are highly durable and can be reused multiple times. This not only lowers production costs but also reduces waste generation, further minimizing the negative impact on the environment.



Efficiency Advantages
In the production of high-nickel lithium battery cathode materials, improving production efficiency is key to reducing costs and enhancing market competitiveness. Ceramic sagger play a vital role in boosting production efficiency.



Improved Sintering Efficiency
Ceramic sagger have excellent thermal conductivity, allowing for more uniform heat transfer, which improves the efficiency of the sintering process. A uniform heating environment ensures the consistency of cathode material quality and reduces the defect rate.



Reduced Production Cycle
Due to the high thermal resistance and low thermal expansion coefficient of ceramic sagger, higher temperature sintering can be conducted in a shorter time. This not only shortens the production cycle but also increases the utilization rate of production lines, further reducing production costs.



First 123 Last
Why Choose us



Excellent team

Our team is experienced bringing wide knowledge to every order we received. We train our employee to ensure they posses the skills and qualifications to deliver outstanding results.





Quality Assurance

We are committed to producing and providing high-quality product. We take advanced production techniques and strict quality control measures to ensure our products have excellent performance, stable chemical composition, and reliable service life.





Experience and expertise

China Gotrays has a strong commitment to their customers. With over 15 years of experience, China Gotrays consistently seeks out innovative ways to ensure its vendors and customers achieve maximum profits.





Considerations for Ceramic Sagger Firing





Temperature: The highest temperature that you reach will affect your firing. If the kiln gets too hot, the heat will fuse the steel wool onto your pot and over-fire the terra sigillata, dimming your shine. Too low of a temperature and the salt and copper will not fume and the pot will be black to grey without any steel wool decoration.



Time and temperature together: The length of the firing at the top temperature is important. Firing too long can burn away all the color and carbon from the surface of the pot. Too little time and you will have a dark pot even at the right temperature. Try the recommended firing schedule. If your pot is too dark, add a couple of minutes. If it is too light, take off a few minutes.



Amount of reduction material in the ceramic sagger: If you place too much reduction material (wood shavings) into the ceramic sagger, the pot will not oxidize and you will have a dark pot with little color. Too little reduction material and your pot may be too light.



Position of your pyrometer in your kiln: The temperature in a raku kiln varies according to the position of the pyrometer in the kiln. Place it halfway down from the top and on the side of the kiln away from the direct intake flame. Keep your pyrometer in the same position in your kiln as you experiment with this process. Also, the older the pyrometer tip, the less accurate the readings.



Ceramic sagger is closed too tightly: If your ceramic sagger is tightly closed, the fired pot will not re-oxidize as quickly, which can result in a dark or black pot. Make sure there is a sliver of a gap on at least one side of the ceramic sagger. You can achieve this by slipping a couple of small wads of steel wool or ceramic fiber between the ceramic sagger and lid. Much of the time there is a natural small gap just due to the slight difference in the shapes of the ceramic sagger and lid.



Selection Criteria And Practical Skills For Ceramic Sagger


In today's ceramic industry, ceramic sagger are favored for their excellent thermal stability and thermal shock resistance. As an industry insider, I know the importance of choosing the right ceramic sagger to improve production efficiency and ensure product quality.

Selection criteria

High temperature resistance: Ceramic sagger need to be able to withstand high temperatures to avoid deformation during the production process.
Thermal shock resistance: Choose products that can withstand rapid temperature changes to reduce losses during production.
Material compatibility: Make sure the selected ceramic sagger is compatible with the ceramic raw materials you produce to avoid reactions or adhesion.
Size and shape: According to the needs of the production line, choose the appropriate size and shape to improve loading efficiency.

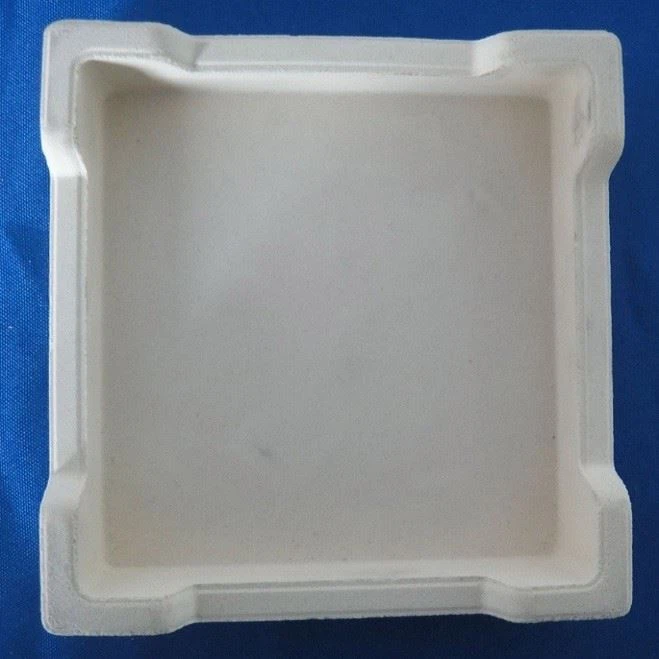

Zircon Ceramic Composites

Practical tips

Not only the standards, but also some practical tips will help you make a more informed choice:
Conduct material testing: Before purchasing, try to obtain a small sample for thermal performance testing.
Compare quotes: Products from different suppliers May differ in price and quality. Comparing prices can help you find the most cost-effective product.
Long-term cooperation: Establish long-term cooperation with reliable suppliers to ensure the stability and consistency of subsequent purchases.
Pay attention to market feedback: Referring to other users’ experience and feedback can greatly reduce the risk of making wrong choices.
When choosing ceramic sagger, we should pay attention to its basic performance standards and also conduct a comprehensive evaluation in combination with practical skills. Through reasonable selection, we can not only improve production efficiency, but also ensure the quality and stability of ceramic products during the firing process. I hope the above information can provide substantial help for you when purchasing ceramic sagger.

Zircon Ceramic Composites




Materials For Improved Lifetime Of Ceramic Sagger In Production Of Li-Ion Cathode Powders


Materials for Ceramic Sagger
As benchmark material, commercially available ceramic sagger was used (provided by BASF SE). The Al2O3, MgAl2O4, and MgO ceramics using powder with >99% purity are prepared by conventional pressing and sintering in a muffle furnace by adapting the temperature for getting >99% density.



Calcination of NCM precursor in different ceramic sagger materials
The premixed NMC precursor (provided by BASF SE) contained LiOH-H2O and Ni0.8Co0.1Mn0.1(OH)2 with a molar ratio of 1.1:1. The transition metal hydroxide was prepared by the conventional coprecipitation method. For the corrosion tests of the saggar materials, an Al2O3 crucible was filled with the premixed powder, and the pieces of saggar material (ca. 10 mm × 10 mm × 4 mm) were placed in the powder bed and covered by premixed NMC precursor. The calcination was done in a conventional muffle furnace with ambient air. The heat treatment was performed four times with a 5 K/min ramp up to a temperature of 780°C and a dwell time of 50 h. After every calcination one piece of the saggar materials was taken from the crucible and the NMC was replaced by fresh premixed precursor powder.



Analysis
The phase composition on the surface of the saggar materials was analyzed using the powder X-ray diffractometer D8 Advance (Ltd. Bruker AXS) with Cu Kα radiation and a LynxEye position-sensitive detector. The identification of the phases was assigned with DIFFRAC.SUITE EVA software.
The phase formation in the saggar materials was investigated with a field emission electron beam source microscope (FESEM, NVision 40 Zeiss). For this purpose, the ceramic specimens were embedded in resin and dry mechanically ground to get the cross-section through the reaction zone, and polished with an Ar ion beam. Energy dispersion X-ray mappings were recorded by an EDX detector (Oxford Instruments). The thickness of the reaction layers was determined on five SEM images at different points so that the average thickness with standard deviation was calculated by 10 to 15 values.



THEORY: Li2O–MgO–Al2O3–SiO2 PHASE DIAGRAM
Since it is already known that Li2O diffusion is the driving force for the reaction with saggar, the material system under consideration can be simplified on the system Li2O–MgO–Al2O3–SiO2. Only in the subsystem Li2O–MgO, an immiscible area is reported. Therefore, a stable phase of Li2O–MgO–Al2O3–SiO2 is not known. In the subsystem Li2O–Al2O3–SiO2 five stable phases are described, but in the case of MgO–Al2O3–SiO2 only Cordierite/Indialite (Mg2Al4Si5O18) is reported. In the binary systems of Li2O–Al2O3 and Li2O–SiO2, three phases (Li-rich, stoichiometric, and Li-poor) are respectively known. For MgO–Al2O3 and likewise for Al2O3–SiO2, spinel or sillimanite/mullite as phases with a large range of Al miscibility are stable, whereas in the system MgO–SiO2 two phases are reported.



RESULTS AND DISCUSSION
Today the benchmark of ceramic sagger materials is mullite with a bimodal grain-sized microstructure (dense, large grains surrounded by porous fine-grained structure). After contact with the NMC precursor, the lithiation is taking place in two zones, whereas the fine-grained part is more reactive than the large grains . The smaller reaction zone on the surface is dominated by Li-rich phases (here: Li5AlO4), whereas the large reaction zone is mainly formed by LiAlO2. The thickness of both zones is increasing with linear growth rate and can be estimated at 3–5 µm/h in total.



Company Introduction





Founded in 2008,China Gotrays is a family run business that prides itself in bringing quality products and service in graphite and refractory field. A leader in providing product and technique solution to many different industries. China Gotrays has a strong commitment to their customers. With over 15 years of experience, China Gotrays consistently seeks out innovative ways to ensure its vendors and customers achieve maximum profits.



The founder,Mr Tang,open the first factory in Zibo and produce graphite molds and synthetic graphite powder. For Mr tang once worked for a state-owned graphite company, he has much experience in graphite application. Gotrays grow quickly in business.



2014
For environment protection requirement, Gotrays open the natural graphite powder factory in Qingdao city and move the synthetic graphite powder production to Anshan City where they have advantage of raw material resource.



2015
Gotrays build self-owned graphite block model and invest graphite block factory ito ensure the competitive price of the whole supply chain.



2017
Gotrays open the refractory business in refractory ceramic and brick as well as silicon carbide product, and found the new business unit- Refractory ceramic business unit (RCB).



2019
Gotrays found the chance in new energy battery, and start the business of refractory products, including saggers and plates.And this business departs from RCB and become a new BU, specially for new energy battery industry.



Today, Gotrays retains the same values Old Mr Tang passed on to his son: hard work, honesty, and perseverance. While gotrays has grown year by year, the key principal of the company's value remains same, great relationships, whether by blood or by proxy, are the keys to any successful business.




Asked Questions



Q: What are the components of ceramic sagger?

A: Ceramic sagger contains silicon oxide and aluminium oxide in the following composition: alumina + silica (chemical formula 3AlO,2SiO). It i dense (C610) or porous (C530) form.

Q: What temperature is a ceramic sagger?

A: Some chemicals work best in foils fired to a lower temperature, in the 1300°F (704°C) range. Some work better in ceramic saggars, fired in the 1700°F (927°C) range.

Q: What is the chemical composition of ceramic sagger?

A: The chemical formula for ceramic sagger is deceptively simple: 3Al2O3·2SiO2. However, the phase stability, crystallography, and stoichiometry of this material remain controversial.

Q: What clay is best for ceramic sagger firing?

A: Most stoneware and white clay bodies will work just fine, with the whiter clays usually showing off with the brightest colors. Although lately I have been liking the deeper, darker red and maroon bodies produced by stonewares with a little iron in the body.

Q: Can you do a ceramic sagger firing in an electric kiln?

A: Step-by-step instructions together with nearly 200 photos show how to get good results with saggar firing in an electric kiln, without damaging your kiln. Understand every aspect, from making the saggar and understanding your work's requirements to using terra sigillata, firing the kiln, and more.

Q: What is the Mohs hardness of ceramic sagger?

A: Ceramic sagger combines strength (6-7 Mohs hardness) with excellent thermal properties, suitable for refractory linings and aerospace engineering.

Q: What is the thermal conductivity of ceramic sagger?

A: The thermal conductivity of the dense fully mullite ceramic is 5.1 W/mK and the thermal conductivity of the air is 0.026 W/mK .

Q: What is the temperature of ceramic sagger?

A: The main condition for obtaining ceramic sagger is the presence of high temperatures (1100--1300°C). Today, the energy of low-temperature plasma is increasingly used as an alternative source of heating of nonmetallic refractory materials .

Q: What is the porosity of ceramic sagger?

A: Porous ceramic sagger ceramics with 30 wt% AlF3 content exhibited a whisker structure with the lowest shrinkage of 3.5%, porosity of 85.2%, compressive strength of 3.06 ± 0.51 MPa, and thermal conductivity of 0.23 W/(m·K) at room temperature.

Q: What makes the colorants in ceramic sagger firing?

A: Color will come from salt, copper carbonate, and ferric chloride. If you want to use salt or copper to good effect, the fire has to be hot enough to volatize them. That's true of all chemicals in saggar fires. They do no good if it doesn't get hot enough.

Q: What to put in a ceramic sagger firing?

A: Materials you will need for a ceramic sagger firing include: wood shavings, coarse steel wool and table salt/copper carbonate mix (5 parts salt to one part copper carbonate.). Note: Rock salt will not break down in the firing to produce fumes.

Q: What temperature does ceramic sagger firing occur?

A: The proportion of Type I ceramic sagger crystals decreases with firing temperature and simultaneously, the size of crystals increases, reaching the maximum value of aspect ratio (3:1) at 1400 °C.

Q: What is the heat transfer coefficient of ceramic sagger?

A: Ceramic sagger presents a critical temperature difference ΔTC of about 750 °C in the case of cooling thermal shock with: Biot number β=0.3, heat transfer coefficient h=600 W/m2 °C and specimen size of (40×6×4) mm3.

Q: What is ceramic sagger made of?

A: Ceramic sagger, any of a type of rare mineral consisting of aluminum silicate (3Al2O3·2SiO2). It is formed upon firing aluminosilicate raw materials and is the most important constituent of ceramic whiteware, porcelains, and high-temperature insulating and refractory materials.

Q: What is the compressive strength of ceramic sagger?

A: At the optimum sintering temperature (1550 °C) and time (3 h), the porous ceramic sagger ceramics exhibited excellent performance with a compressive strength of 31.4 MPa, porosity of 47%, and thermal conductivity of 0.775 W/(m∙K).

Q: What is the crystal structure of ceramic sagger?

A: 2Al3+ + - vacancy (&). The introduction of oxygen vacancies is ac- companied by a shift of the two T positions next to the vacancies towards bridging O3 atoms in the T2O7 groups now forming trimers of three tetrahedra occupied by Si and Al atoms.

Q: What is the microstructure of ceramic sagger?

A: Ceramic sagger (rodlike) microstructure which has whisker-like grains with high aspect ratios within a fine grain matrix was obtained by adding AlF3 into ceramic sagger precursor and heat-treated at 1150 °C in airtight condition and then sintering at high temperature.

Q: What is the stoichiometry of ceramic sagger?

A: Ceramic sagger, an intermediate phase of the binary alumina-silica system, is one of the most important phases of ceramic products containing alumina and silica in the initial composition. Its stoichiometry ranges from 3Al2O3. 2SiO2 (3:2) to 2Al2O3.

Q: How does ceramic sagger firing work?

A: With ceramic sagger stacked in the kiln, the firing begins with a soft flame for the first hour, gradually increasing the temperature to 1500 degrees Fahrenheit over the next 4-8 hours. At this point, the burners are shut off, the openings are plugged, and the kiln remains undisturbed for 18-20 hours.

As one of the leading ceramic sagger manufacturers and suppliers in China, we warmly welcome you to wholesale high quality ceramic sagger at competitive price from our factory. Contact us for more details.

Alumina Ceramic Sagger, Corundum Mullite Sagger, Fused Alumina Sagger
